Aqua Jet Water Pressure System [Type: 5.2 24V]

 Bulky/Heavy Item – Quote required for shipping



Marine – Recreational Water Pressure System



The five chamber Aqua Jet Water Pressure Pump "WPS" series provides a reliable heart for small boat and recreational vehicle water pressure systems. Efficient and compact, Aqua Jet pumps are particularly suitable where low amperage and sound levels in relation to water flow are placed at a premium - such as in shower and galley applications.

• Whisper quiet operation
• Five-chamber construction
• Self-priming
• Integrated pressure switch turns pump on and off automatically when tap is opened and closed.
• Easy, low-cost maintenance
• Quick-connect hose or threaded connectors available
• Long service life
• Operates in fresh or sea water



Material Specifications

Pump Body	PP / PPA
Valve Housing	Polypropylene
Valves	EPDM
Diaphragm	Santoprene



Technical Data

Description	Capacity	Pressure Cut Off	Voltage	Fuse Size	Connection
Aqua Jet WPS 2.4 12V	9 L/min - 2.4 GPM	2.8 bar, 41 psi	12 V	10 A	⅜" BSP / hose ½", ½" BSP / hose ¾"
Aqua Jet WPS 2.4 24V	9 L/min - 2.4 GPM	2.8 bar, 41 psi	24 V	5 A	⅜" BSP / hose ½", ½" BSP / hose ¾"
Aqua Jet WPS 2.9 12V	11 L/min - 2.9 GPM	2.8 bar, 41 psi	12 V	10 A	⅜" BSP / hose ½", ½" BSP / hose ¾"
Aqua Jet WPS 2.9 24V	11 L/min - 2.9 GPM	2.8 bar, 41 psi	24 V	5 A	⅜" BSP / hose ½", ½" BSP / hose ¾"
Aqua Jet WPS 3.5 12V	13 L/min - 3.5 GPM	2.8 bar, 41 psi	12 V	10 A	⅜" BSP / hose ½", ½" BSP / hose ¾"
Aqua Jet WPS 3.5 24V	13 L/min - 3.5 GPM	2.8 bar, 41 psi	24 V	5 A	⅜" BSP / hose ½", ½" BSP / hose ¾"
Aqua Jet WPS 4.0 12V	15 L/min - 4.0 GPM	2.8 bar, 41 psi	12 V	10 A	⅜" BSP / hose ½", ½" BSP / hose ¾"
Aqua Jet WPS 4.0 24V	15 L/min - 4.0 GPM	2.8 bar, 41 psi	24 V	5 A	⅜" BSP / hose ½", ½" BSP / hose ¾"
Aqua Jet WPS 5.2 12V	20 L/min - 5.2 GPM	2.8 bar, 41 psi	12 V	15 A	⅜" BSP / hose ½", ½" BSP / hose ¾"
Aqua Jet WPS 5.2 24V	20 L/min - 5.2 GPM	2.8 bar, 41 psi	24 V	8 A	⅜" BSP / hose ½", ½" BSP / hose ¾"

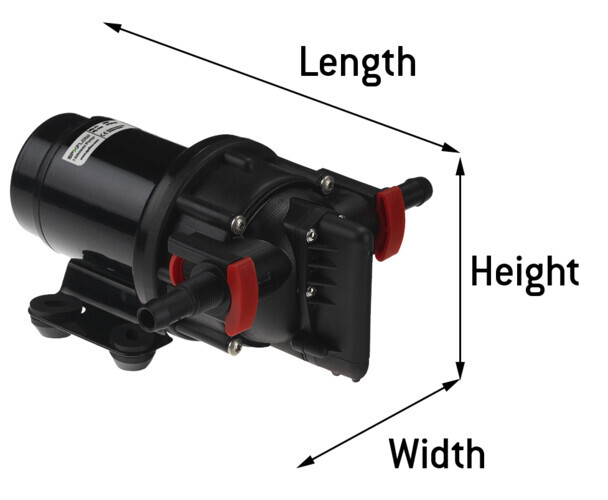

Dimensions

Model	Height	Width	Length	Weight
Aqua Jet 2.4	110mm	197mm	204mm	1.6kg
Aqua Jet 2.9	110mm	197mm	204mm	1.6kg
Aqua Jet 3.5	116mm	210mm	236.5mm	2kg
Aqua Jet 4.0	110mm	214mm	240mm	2kg
Aqua Jet 5.2	110mm	214mm	240mm	2kg





Key Application of a Typical Water Pressure System





1	Water tank	7	Accumulator tank
2	PUMProtector inlet strainer	8	Water heater
3	Aqua Jet Water Pressure Pump	9	ON / OFF bipolar switch
4	Battery	10	Motor
5	Fuse	11	Check valve
6	Switch	12	Shut-off valve



For minimizing the number of starts and stops - and thereby reducing wear and tear on the pump when only small amounts of water are drawn off - it is recommended to install the WPS pumps together with an accumulator tank.

Always use a PUMProtector Inlet Strainer before the pump intake.
