Cartridge Bilge Pump [Size: 500 GPH 12V]

$38.40

or 4 payments of $9.60 with Info


Size


Description

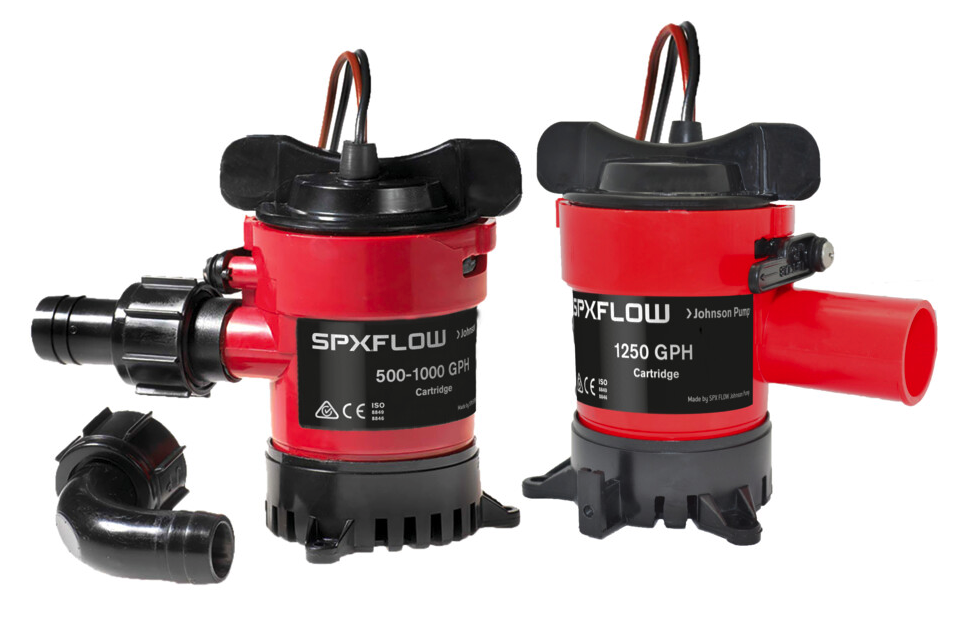

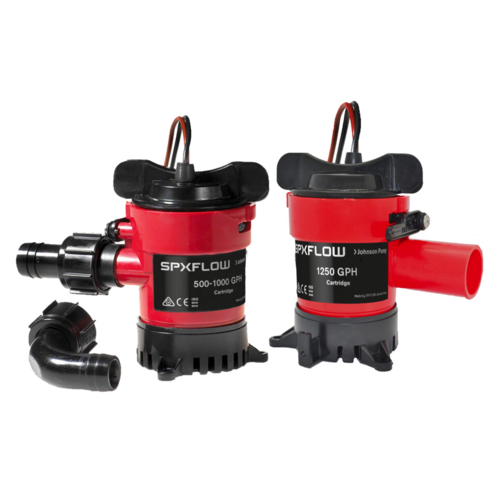

Cartridge Submersible Bilge Pump in capacities of 500, 750, 1000 and 1250 GPH.

  • All-in one motor/impeller unit
  • Extremely energy efficient
  • Water-cooled motor for long service life
  • Compact, all-in-one motor/impeller unit with stainless steel (SS2343) shaft
  • No tools needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses.
  • 500 GPH, 750 GPH, and 1000 GPH pumps have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps
  • 500 GPH, 750 GPH, and 1000 GPH pumps are delivered including both a straight and a 90° smooth elbow Dura-Port as well as a removable check valve
  • Cartridge Pumps can be combined with either an automatic switch AS888, an electronic float switch or the Ultima Switch for automatic operation



Technical Data

Description Capacity 0.9 m head
(13.6V/27.2V)
Capacity straight
(13.6V/27.2V)
Voltage Amperage Fuse Size Connection Wire size
Cartridge Bilge Pump 500 GPH 12V 33 l/min - 525 GPH 40 l/min - 630 GPH 12 V 2.5 A  5 A ¾" 16 GA (1.3mm2)
Cartridge Bilge Pump 750 GPH 12V 44 l/min - 700 GPH 50 l/min - 800 GPH 12 V  3 A  5 A ¾" 16 GA (1.3mm2)
Cartridge Bilge Pump 1000 GPH 12V 50 l/min - 800 GPH 63 l/min - 1000 GPH 12 V 3.2 A  5 A ¾" 16 GA (1.3mm2)
Cartridge Bilge Pump 1000 GPH 24V 50 l/min - 800 GPH 63 l/min - 1000 GPH 24 V  2 A  3 A ¾" 16 GA (1.3mm2)
Cartridge Bilge Pump 1250 GPH 12V* 60 l/min - 952 GPH 73 l/min - 1150 GPH 12 V  3 A  5 A 1⅛" 16 GA (1.3mm2)
Cartridge Bilge Pump 1250 GPH 24V* 60 l/min - 952 GPH 73 l/min - 1150 GPH 24 V  2 A  3 A 1⅛" 16 GA (1.3mm2)



Dimensions

Model Max Ø Height (A) Width (B) Length (C) Weight
500 GPH 12V 70mm 112mm 88mm 80mm 0.27kg
750 GPH 12V 70mm 112mm 88mm 80mm 0.27kg
1000 GPH 12V & 24V 70mm 112mm 88mm 80mm 0.27kg
1250 GPH 12V & 24V 70mm 112mm 88mm 80mm 0.32kg

Specifications

SKU J-32-CART
Brand SPX FLOW
