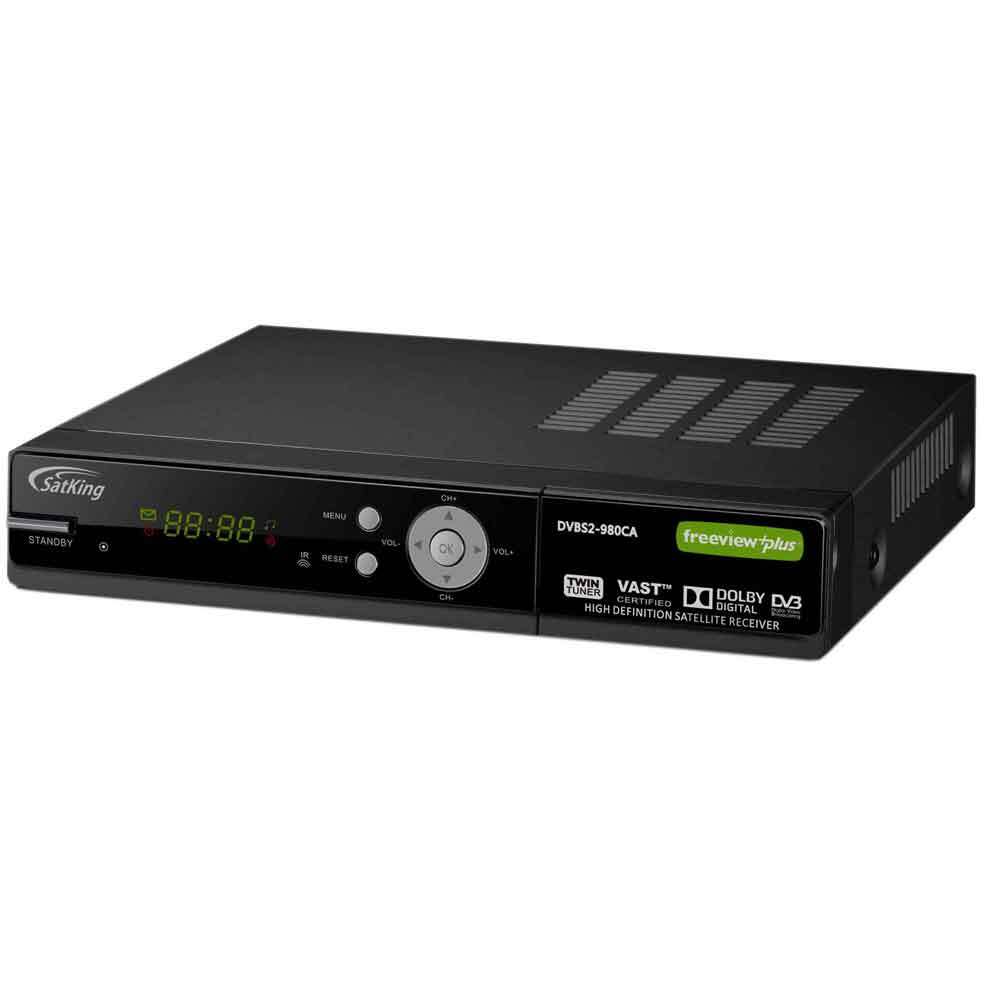

Satking Dual Tuner VAST Satellite Receiver
Description
Fully designed in Australia this top of the range receiver brings a new level of features to the VAST platform.
The receiver has Freeview Plus catch up TV and the enhanced Freeview Plus EPG built in.
No longer will you miss your favourite programs, you can simply go back in the Freeview Plus program guide and catch up available programs.
Connect an external hard disk drive (up to 3TB) and take advantage of the twin tuners, you can record two different channels and watch a third program from within a network all at the one time. You can also use the receivers advanced media playback functions to playback movies in AVI, DIVX, MOV, FLV, MKV, MP4 files and pictures via the 2 USB ports.
The receiver has all the market leading features you expect from SatKing like compact size, built in signal finder, 12/240V operation, recording series link, learning remote control and low power consumption.
Features
- Australian VAST Certified
- Freeview Plus Catch up TV Certified
- High Definition MPEG4 Compliant
- Twin Tuner, Record and 2 Channels and Watch a 3rd from Within a Network
- USB PVR Ready 3TB Maximum External Hard Disk Drive
- Pause & Rewind Live TV
- Compact Size 230x163x43mm
- Low Power Consumption with Energy Saving Function
- 8 Day EPG with Series Link

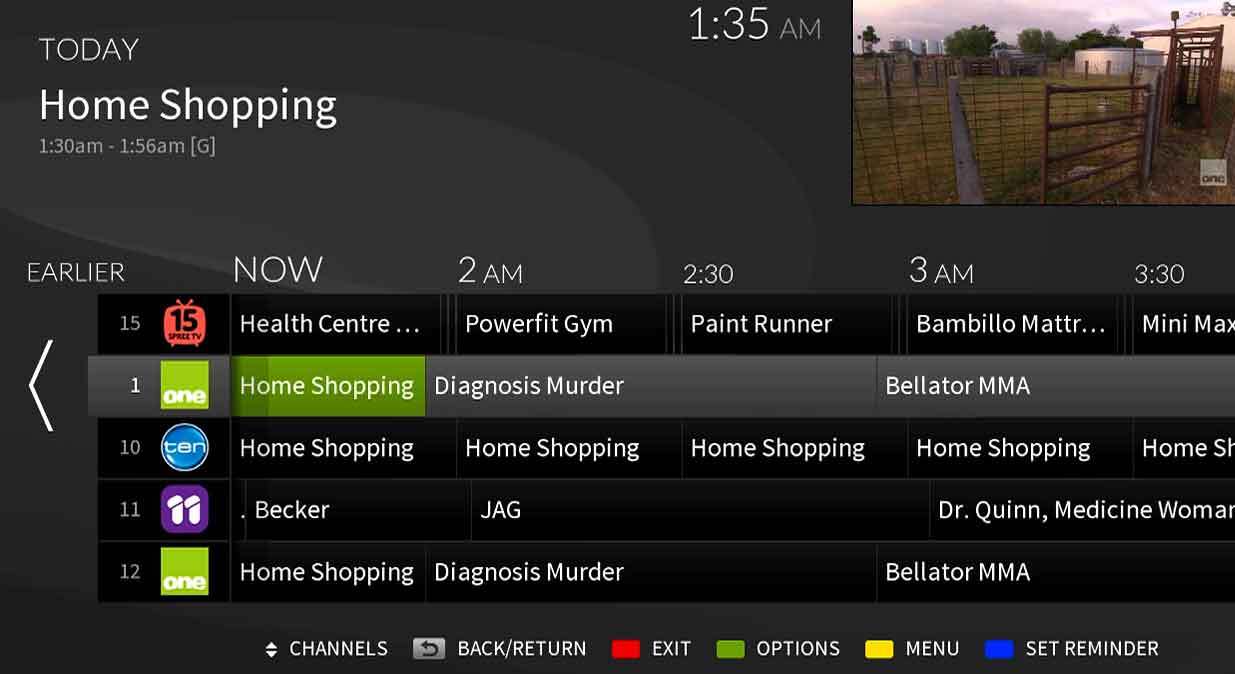

- Enhanced Freeview EPG

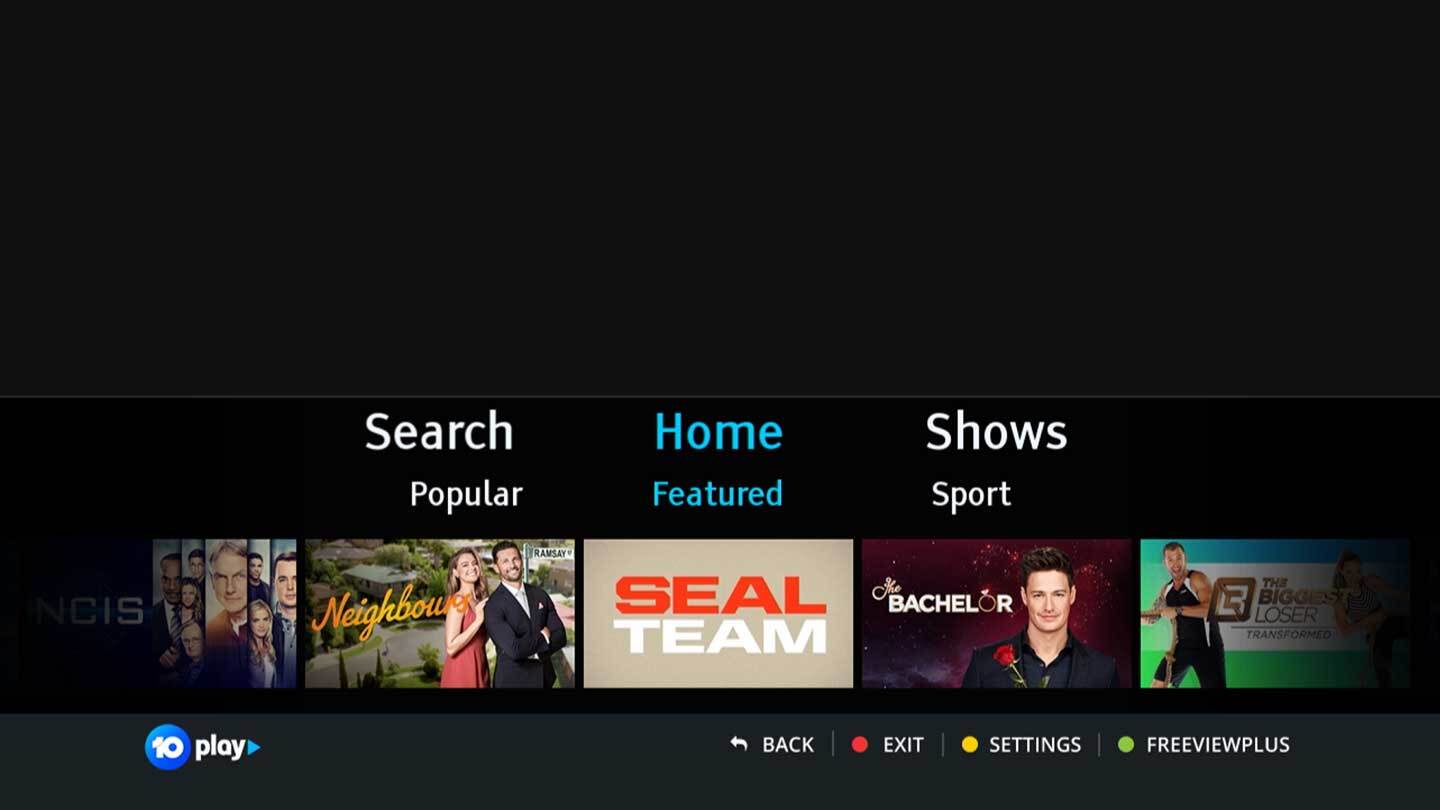

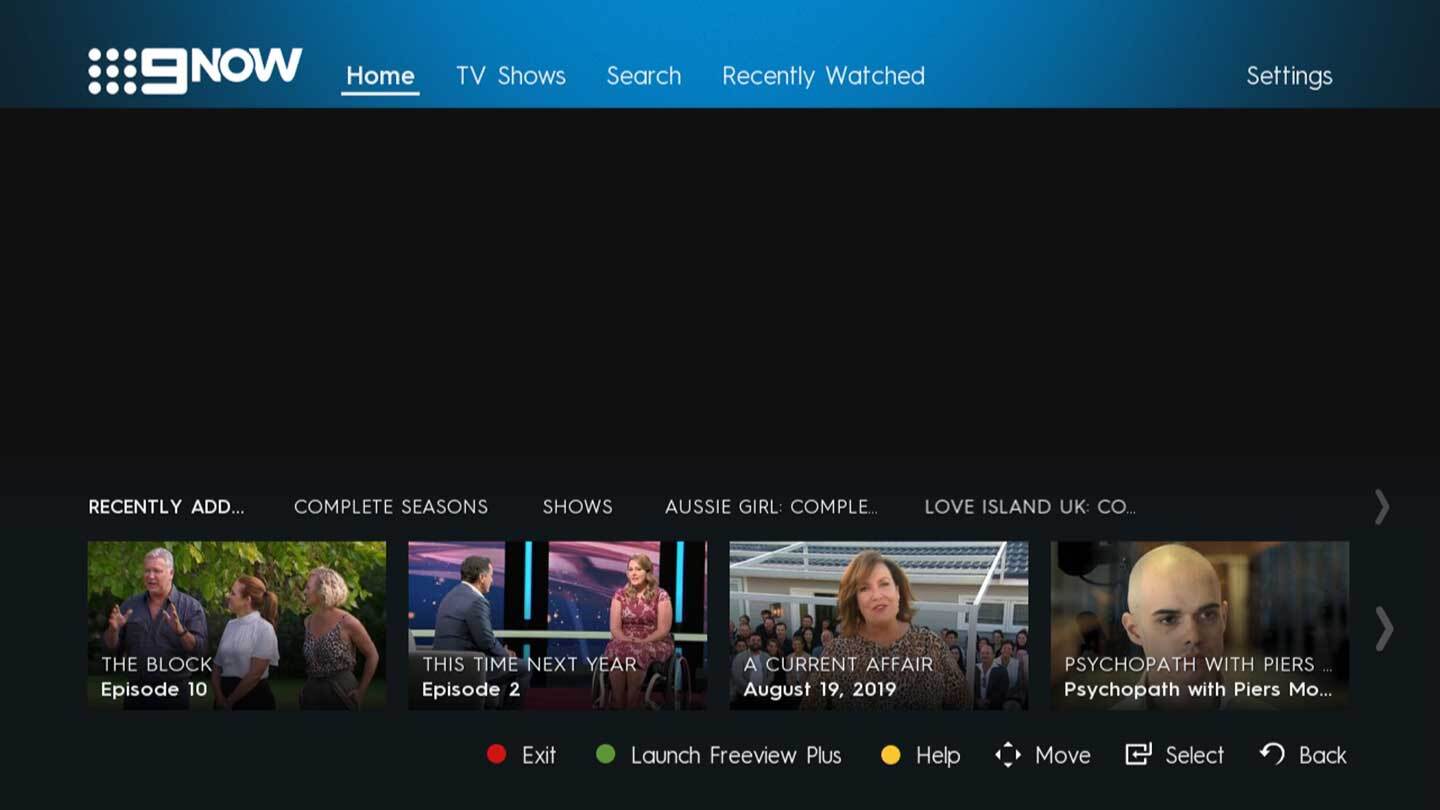

- Catch up Services ABC i-View, SBS On Demand, Plus7, 9Now, Ten Play
- Signal Finder with Beeper
- Optional WIFI Dongle & Infrared Target
- Subtitles Supported (Closed Captions)
- 1080P Upscaling

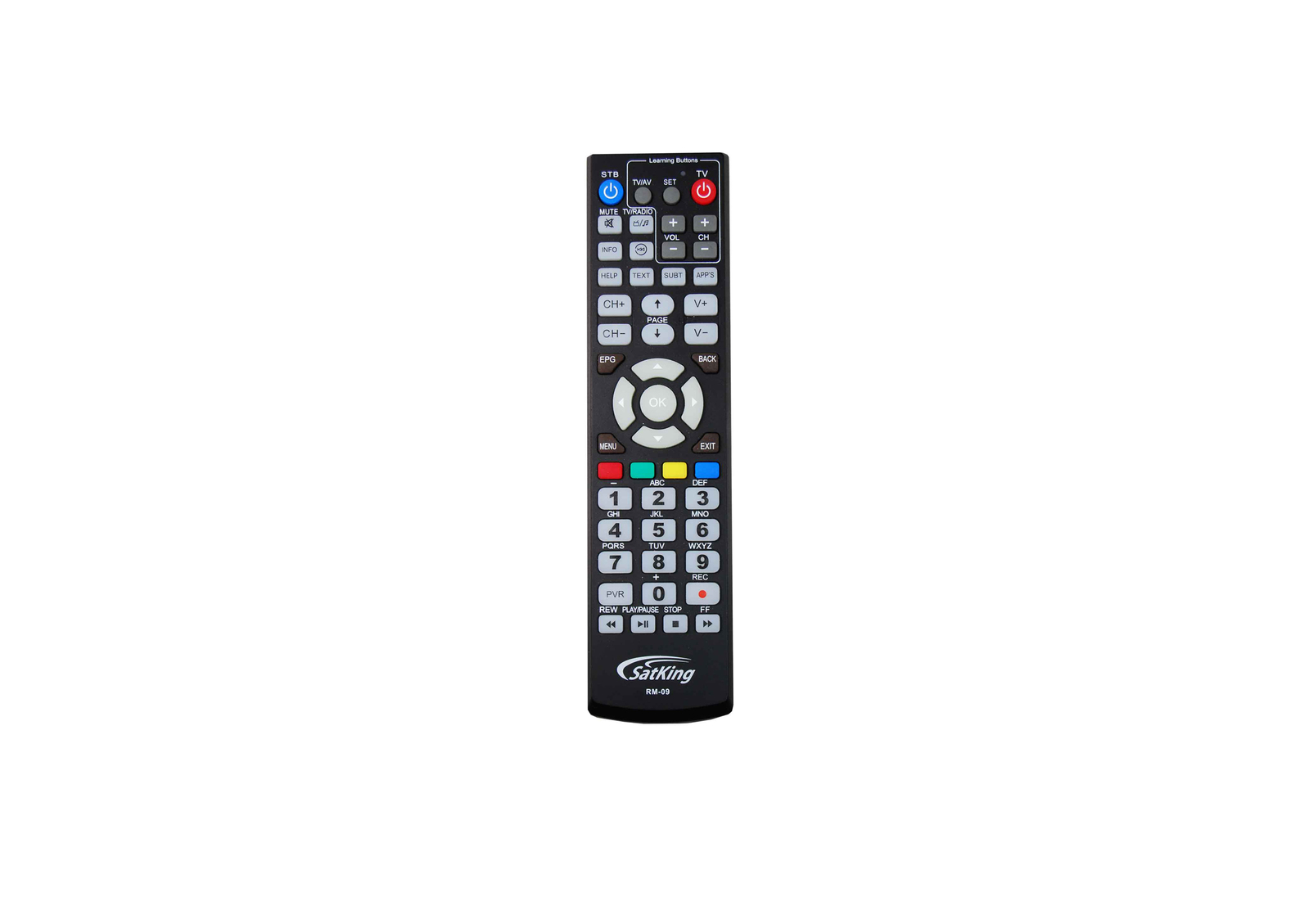

- Learning Remote
- Over The Air Software Download Supported
- Easy to Use with Auto tuning and One Touch Recording
Specifications
System
- Processor: 1.6GHz
- Flash memory: 4MB NOR + 128MB NAND
- RAM: 1GB DDR2 & DDR3
- EEPROM: 32 kbyte
Tuner
- Standard: DVBS-EN300421, DVBS2-EN302307
- Input Frequency: 950 ~ 2150 MHz
- RF Input Level: -65~-25dBm
- Symbol Rates DVBS: 1-45,000
- Symbol Rates DVBS2: 1-45,000
- Demodulation: QPSK, 8PSK, 16APSK, 32APSK
- FEC Mode QPSK: DVBS 1/2, 2/3, 3/4, 5/6, 7/8
- FEC Mode 8PSK: DVBS2 1/2, 2/3, 3/4. 3/5, 4/5, 5/6, 8/9, 9/10
- LNB Power: 13V Vertical, 18V Horizontal, Off, 500mA Max
- LNB Presets: 10700, 10750, 11300, 9750/10600, User Define
- 22kHz Tone: 22KHz +/- 2KHz
- DiSEqC: Versions 1.0/1.2
Video Decoding
- Decoding: MPEG-2 MP@ML, MP@HL HD, MPEG-4 H.264/H.265 HEVC
- Video Format: Pal B/G
- Aspect: 16:9, 4:3
- Video resolution: 576i, 576p, 720p, 1080i, 1080p
Audio Decoder
- Standard: ISO/IEC 13818-3
- Decoding: MPEG-1 Layer I&II, Dolby AC3, MPEG4-HE-AAC V2
- Output mode: Stereo, Mono, Left, Right
- utput Impedance: Low
- Sampling frequency: 32,44.1, 48KHz
- Output Levels: 32 Levels
Encryption
- Irdeto Version: Secure Silicon 3.2HL
- CAS: Version 3
- Smart Card: ISO 7816
- Software Upgrade: Over The Air & USB
Data Output
- IP Data: EN-301 192-7, Supported Via RJ-45
- Low Speed Data:: Supported Via RS-232
Freeview Plus
- DRM: Playready
- Version: HbbTV 1.5
Media Player
- Video File Formats: AVI, DIVX, MOV, FLV, MKV, MP4
- Picture File Formats: JPEG, PNG
- Audio File Formats: MP3, ACC

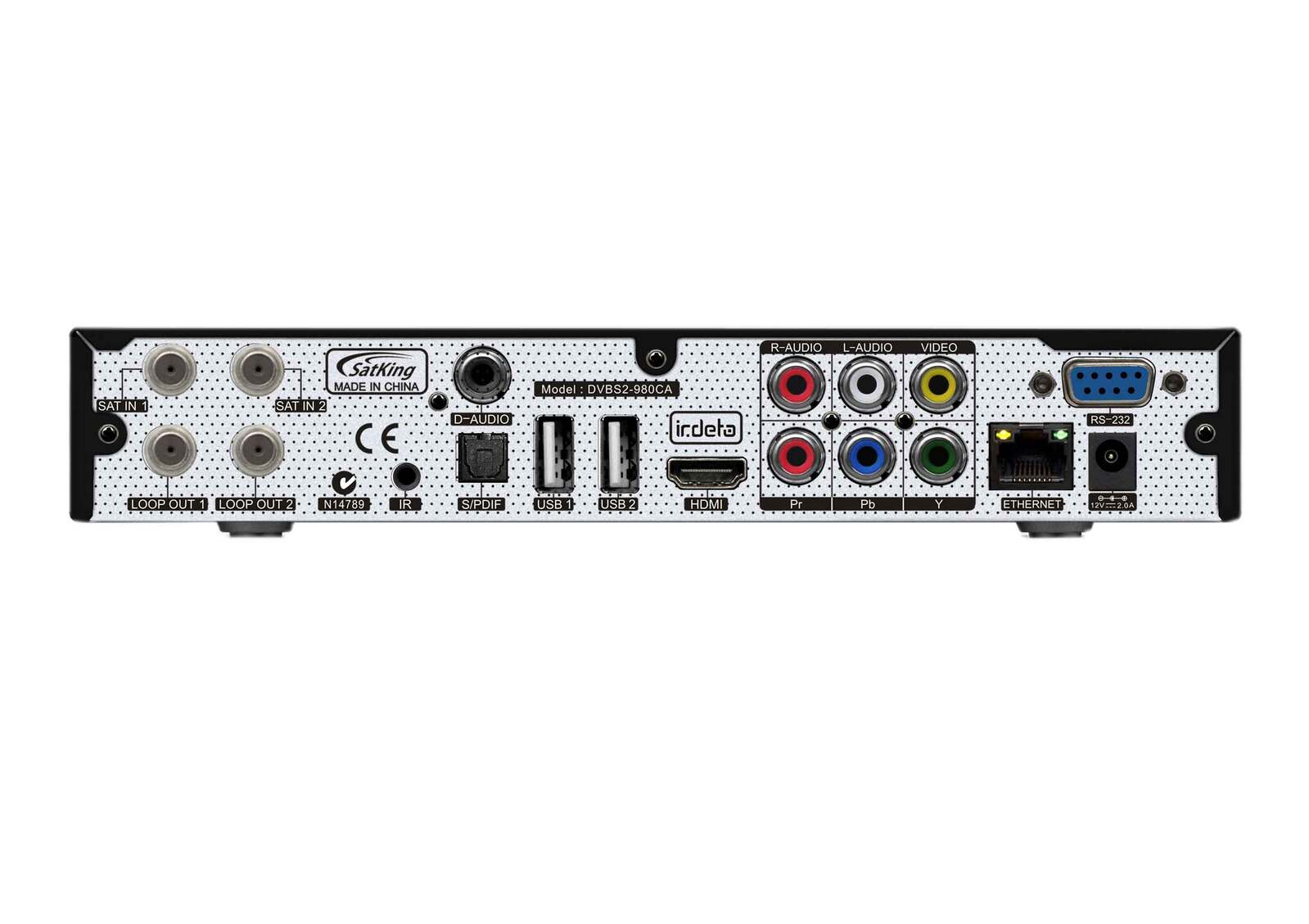

Connections
- Satellite Input: 2x F Type Female 75Ω
- oop Output: 2x F Type Female 75Ω
- HDMI: 1x 1.4B
- YPbPr: 3x RCA
- AV Out: 3x RCA
- Digital Audio: 1x Optical S/PDIF, 1x Coaxial
- USB: 2x USB 2.0A Type 500mA Max
- Ethernet: 1x RJ-45
- IR Extension: 1x 3.5mm Jack
- DC Input: 1x 2.1mm Jack
- Data: 1x RS232 9 Pin Din
Power
- Input Voltage: 8-16VDC
- Consumption: 10W Max
Power Adaptor
- nput: 100-240VAC
- Output: 12VDC, 2A
Physical
- Dimensions: 230x163x43mm
- Weight: 650grams
- Temperature Range: 0-50°
Accessories
- Remote: 1x Remote with Learning Functions
- Power Pack: 1x 12VDC 2Amp
- User Manual: 1x A5
- Batteries: 2x 1.5VDC
- UAV Cable: 1x 3 RCA to RCA Video & Audio
| SKU | FTA-12SK |
| Brand | OCEAN TV |
