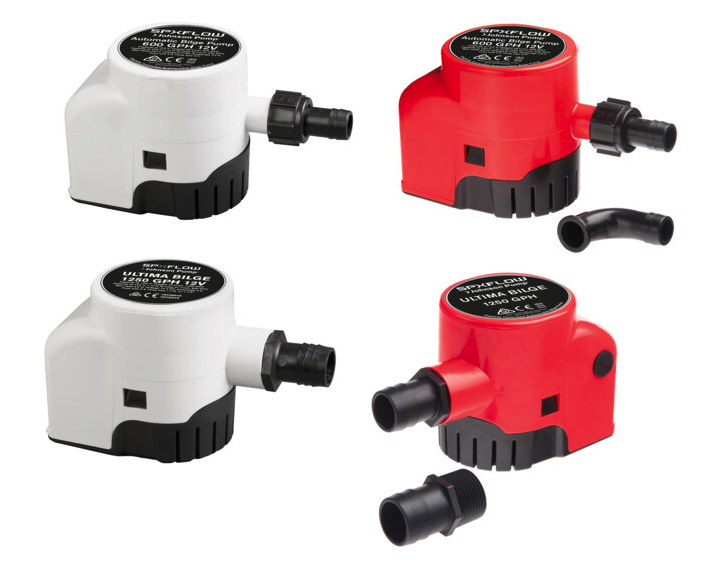

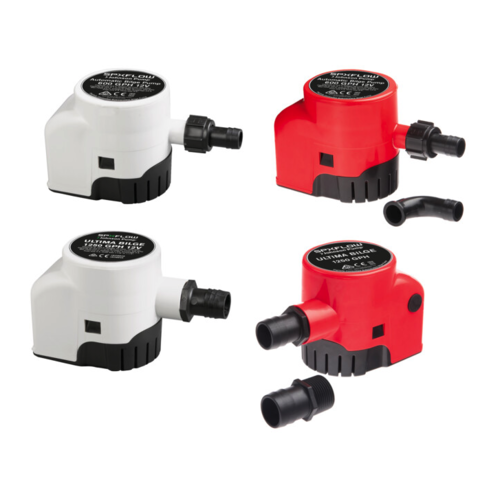

Ultima Bilge Pump [Size: 600 GPH]

$127.65

or 4 payments of $31.91 with Info


Size


Description

Ultima Bilge Pump in capacities of 600, 800, 1000 and 1250 GPH.

  • Compact, all-in-one unit
  • Integrated Ultima Switch technology in the pump body for trouble free automatic operation
  • Ultima Bilge 600, 800 and 1000 GPH pumps have easy to install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps
  • These pumps include both a straight and a 90° smooth ¾” elbow Dura-Port
  • Ultima Bilge 1250 GPH includes a threaded 1 1/4" & 1 1/8" discharge port
  • All versions are delivered with a removable check valve
  • No mercury
  • Removable clip-on basket design
  • Removable impeller cover allows for easy clean out
  • No tools needed for maintenance
  • Extremely energy efficient
  • Water-cooled motor for long service intervals
  • The Ultima Bilge pumps are 3-wire devices and can be run in auto or manual override mode via the bilge control panel



Technical Data

Description Capacity 0.9 m head
(13.6V)
Capacity straight
(13.6V)
Voltage Amperage Fuse Size Connection
Ultima Bilge Pump 600 GPH 12V (with integrated switch) 32 L/min - 500 GPH 38 L/min - 600 GPH 12 V 2.5 A  5 A ¾"
Ultima Bilge Pump 800 GPH 12V (with integrated switch) 38 L/min - 600 GPH 51 L/min - 800 GPH 12 V  3 A  5 A ¾"
Ultima Bilge Pump 1000 GPH 12V (with integrated switch) 44 L/min - 700 GPH 64 L/min - 1000 GPH 12 V 3.2 A  5 A ¾"
Ultima Bilge Pump 1250 GPH 12V (with integrated switch)* 51 L/min - 800 GPH 79 L/min - 1250 GPH 12 V  3 A  5 A 1⅛" and1¼"

*Does not include 1250 GPH Dura-Port connection



Dimensions

Model Height Width Length Weight
600 GPH 12V 105mm 82mm 142mm 0.66kg
800 GPH 12V 105mm 82mm 142mm 0.66kg
1000 GPH 12V  105mm 82mm 142mm 0.66kg
1250 GPH 12V 117mm 82mm 142mm 0.66kg



Specifications

SKU J-32-ULTIMA
Brand SPX FLOW
