Viking Power 16 Wastewater Pump [Size: 12V]

$357.75

or 4 payments of $89.44 with Info


Size


Description

 Bulky/Heavy Item – Quote required for shipping

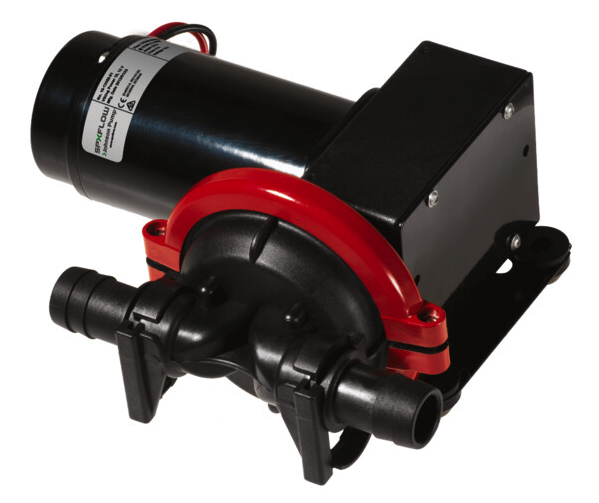

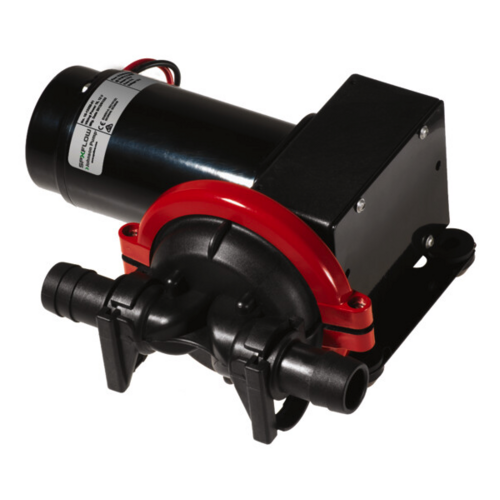

Compact Shower Drain, Bilge and Wastewater Pump

A modern, single-chamber, self-priming diaphragm pump that can be set up in several different pump/motor configurations. It is easy to install anywhere after the drain outlet in the wastewater system or as a bilge pump in any leisure craft – new or used.

  • Specially designed to pump wastewater
  • Easy to install, even in tight spaces
  • Quiet operation
  • Easy, low-cost maintenance
  • High-impact fiberglass reinforced nylon body
  • Ball-bearing supported transmission
  • Non-choke valves - no filters required
  • Self-priming up to 3m
  • Can be run dry and can pump air/water mixture
  • Robust single diaphragm
  • KlickTite™ XL connectors standard
  • 12V or 24V motors
  • Low power consumption
  • Complies with ISO15083 small craft bilge pump standards for vessels up to 12m



Material Specifications

Motor  2.3 amp (12V), 1.2 amp (24V) @ 0.1 bar
(built-in thermal protection)
Body  Nylon, glass-fiber reinforced
Valves  Nitrile rubber
Diaphragm  Reinforced nitrile rubber



Technical Data

Description Capacity
open flow
Capacity
@0.1 bar
Max lift Max head Connection Voltage Fuse
Viking Power 16 12V 16 l/min – 4.2 GPM 15 l/min – 4.0 GPM 3m 3m 1" and ¾" KlickTite XL connectors, 90° (Optional) 12 V 8 Amp
Viking Power 16 24V 16 l/min – 4.2 GPM 15 l/min – 4.0 GPM 3m 3m 1" and ¾" KlickTite XL connectors, 90° (Optional) 24 V 5 Amp



Dimensions

Length  186mm
Width  227mm / 181mm
Height  117mm / 204mm
Weight  2.6kg



Specifications

SKU Viking16
Brand SPX FLOW
